Carver 5600F Water Softener Control Valve

The Carver 5600F is modeled after a proven industry-standard control valve design, offering reliable performance for residential and light commercial water softening systems. This smart, digital metered valve is ideal for both residential and light commercial applications, offering dependable hardness reduction, intuitive programming, and efficient regeneration cycles.

Key Features

🔧 Smart Hardness Control The Carver 5600F intelligently reduces water hardness from 0.8 to 0.03 mg·N/L, helping prevent scale buildup, protect plumbing, and extend the life of appliances.

📟 Digital LCD Interface Equipped with a user-friendly digital display, the system provides real-time operational data and status. The onboard menu includes customizable regeneration cycles, timer settings, and manual override options.

🔩 Rotary Thread Connections (DN25) Features threaded 1" (DN25) inlet/outlet ports for secure and straightforward plumbing connections during installation.

🛠️ Durable, Lightweight Construction Constructed from reinforced polypropylene, this control valve body is lightweight yet impact-resistant—ideal for long-term use in demanding environments.

🧰 Complete Installation Kit Includes all necessary accessories and mounting hardware for a fast and straightforward installation process.

🕹️ Built-in Timer and Programmable Modes The internal control board offers multiple operation modes tailored to user needs, with settings for regeneration timing, backwash frequency, and service intervals.

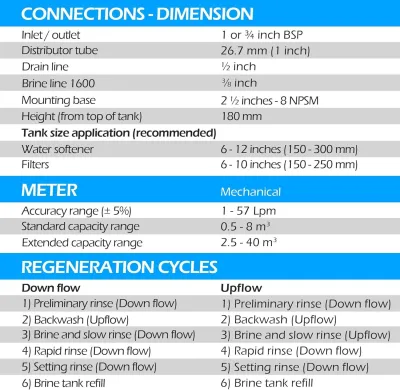

Specifications

• Model: Carver 5600F

• Input Voltage: 110V (US Plug)

• Power Consumption: 3W

• Rated Flow Rate: 2 Tons/hour (T/H)

• Operating Weight: 100 kg / 220 lbs

• Tank Pressure Rating: 0.6 MPa

• Working Pressure Range: 0.2 – 0.4 MPa

• Water Output Capacity: 3000 kg / 6614 lbs

• Temperature Range: 0°C – 50°C

• Raw Water Hardness: 0.8 mg·N/L

• Treated Water Hardness: 0.03 mg·N/L

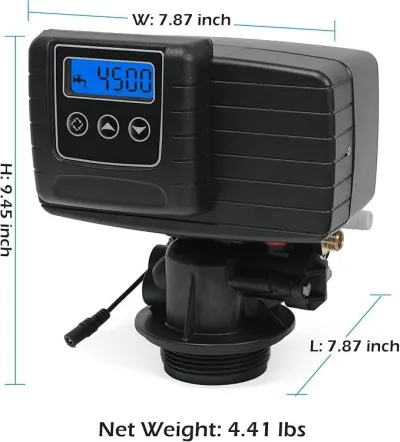

• Product Dimensions: 7.8 x 7.8 x 9.5 inches

• Net Weight: 4.4 lbs

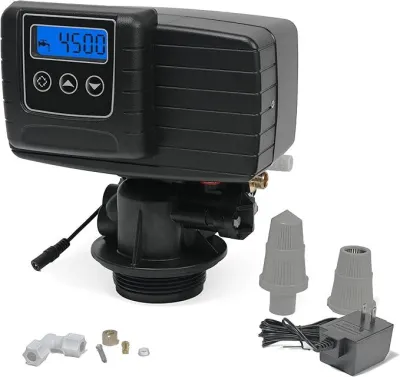

Package Includes

• (1) Carver 5600F Control Head

• (1) Power Cord (110V, US Plug)

• (1) Installation Hardware Kit
